| Digital Audio |
| Converters | - Cirrus Logic, 24-bit PCM, 48 kHz
|
| Digital Signal Processing | - 32-bit, Floating Point, Double precision
|

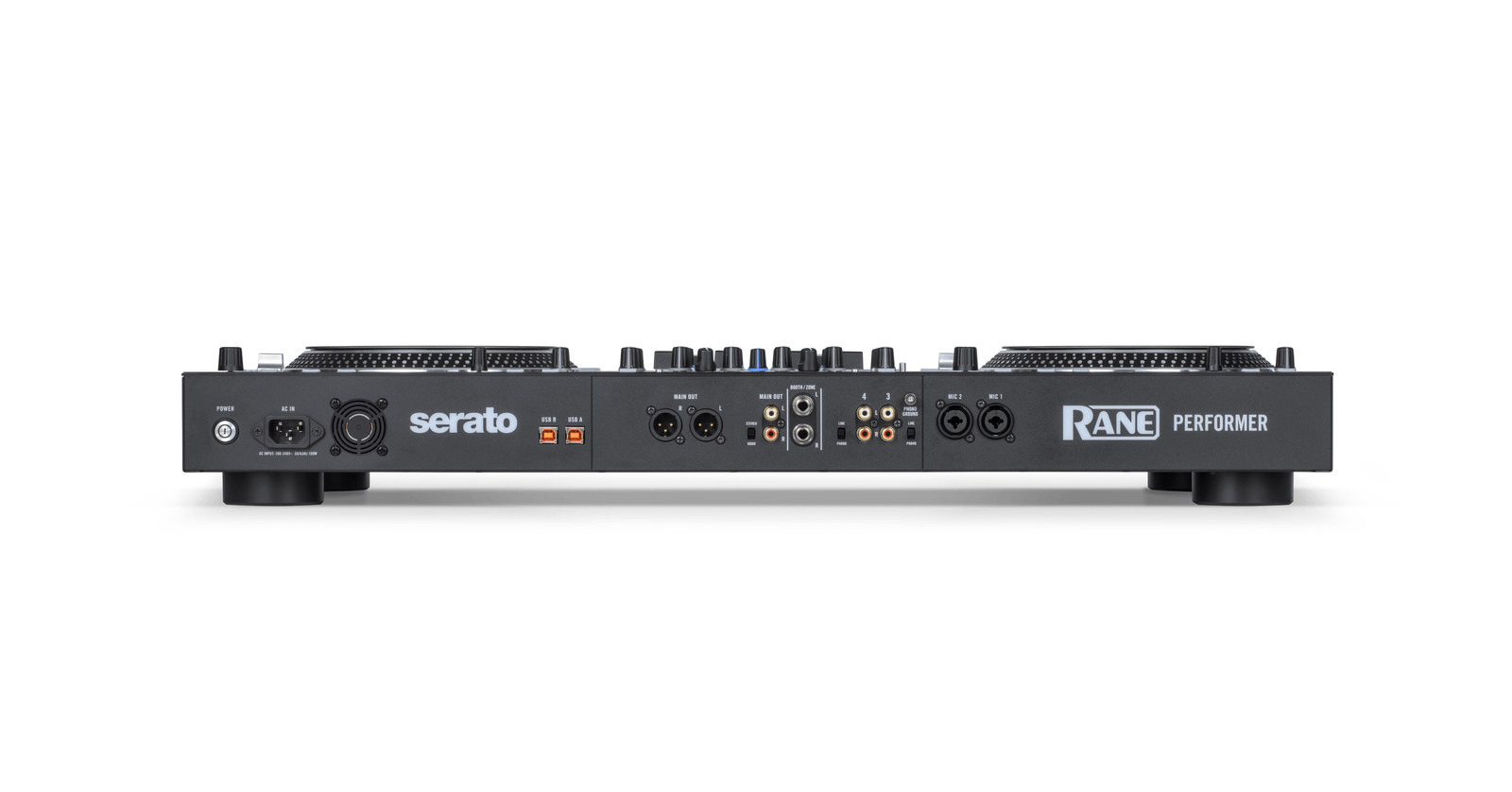

| Connections | - (2) XLR outputs (Main)
- (2) 1/4” outputs (Booth)
- (1) RCA stereo output pair (Main)
- (2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
- (2) RCA stereo input pairs (Deck 3-4)
- (1) 1/4” (6.35 mm) TRS output (Headphones)
- (1) 1/8” (3.5 mm) TRS output (Headphones)
- (2) USB Type-B ports
- (1) IEC power cable input
|
| Audio Outputs |
Main Outputs
(XLR) | - Gain Trim
- Maximum Output
- THD+N (20 kHz BW @ 1 kHz)
- Frequency Response
| - Off to 0 dB
- 8 Vrms
- 0.004%
- Flat – 20-20kHz
|
Main Outputs
(RCA stereo pair) | - Maximum Output
- THD+N (20 kHz BW @ 1 kHz)
- Frequency Response
| - 4 Vrms
- 0.004%
- Flat – 20-20kHz
|
Booth Outputs
(1/4”) | - Gain Trim
- Maximum Output
- THD+N (20 kHz BW @ 1 kHz)
- Frequency Response
| - Off to 0 dB
- 8 Vrms
- 0.004%
- Flat – 20-20kHz
|
Headphone Outputs
(1/4”/6.35 mm and 1/8”/3.5 mm TRS) | - Maximum Output
- Output Power
- Dynamic Range (A-weighted)
| - 4 Vrms Voltage: (no load)
- 50 mW (50 ohms)
- 108 dB
|
| Audio Inputs |
Microphone 1/2
(Combo XLR/1/4” [6.35 mm] TRS) | - Analog Gain
- Maximum Input
- Gain Trim
- Tone Control
| - 25 dB
- 110 mV
- Off to +26 dB (unity at center)
- 2-band
|
Line/Phono Inputs 3/4
(RCA stereo pairs, switchable) |
| Line | - Maximum Input
- Gain Trim
- Tone Control
- THD+N (20 kHz BW @ 1 kHz
| - 4 Vrms
- Off to +12 dB
- 3-band, full-cut to +10 dB
- 0.004%
|
| Phono (RIAA) | - RIAA Curve
- Gain (@ 1 kHz)
- Maximum Input (@ 1 kHz)
- Dynamic Range (A-weighted)
| - +/-0.25 dB
- 31.5 dB
- 106 mV
- 102 dB
|
