Vinyl Turntablism Excellence Meets Digital Performance Power!

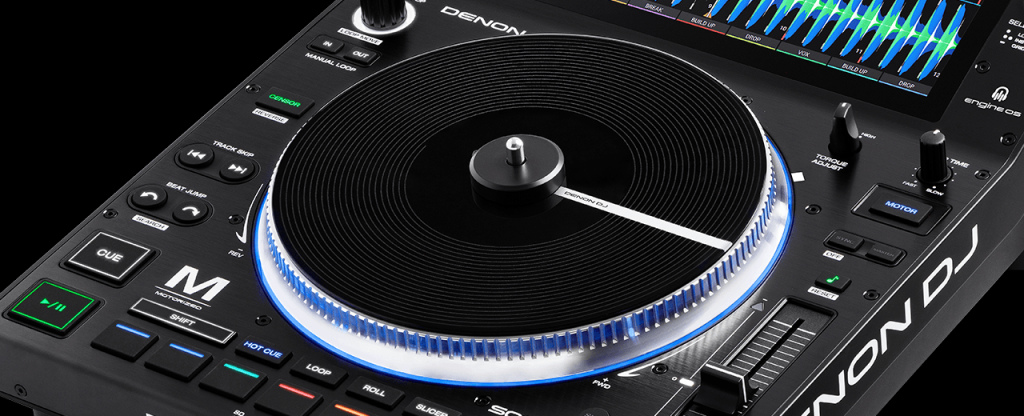

8.5" Aluminum Motorized Platter

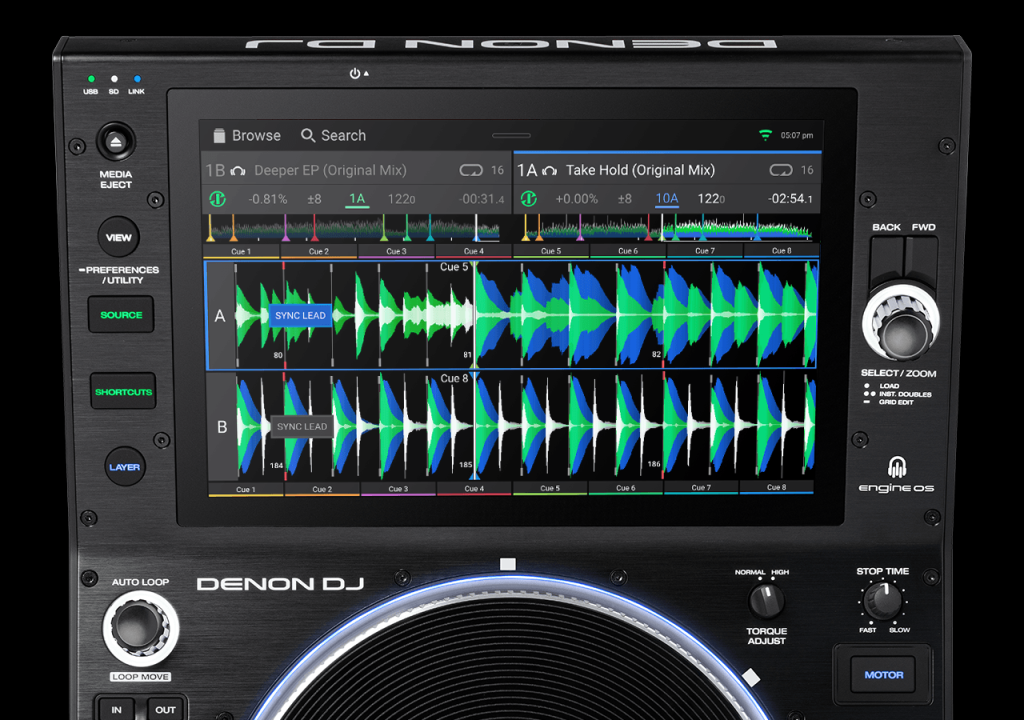

10.1" HD Touchscreen
2-Players-in-1
Stream or Play Music from the Clou
Performance Pads
Add Your Heading Text Here
SPECS
SPECS
Audio
Analog Output: 2.0 Vrms (0 dBFS, 1 kHz)
Signal-to-Noise Ratio: 116 dB
Distortion (THD+N): < 0.0015%
Frequency Range: 22–22,000 Hz
Digital Output:
Sampling Rate: 96 kHz
Bit Depth: 24-bit
Platter
Material: Metal construction
Diameter: 8.5″ / 216mm
Display
10.1″ / 257 mm (diagonal)
10.11″ x 6.9″ / 257 x 175 mm (width x height)
Full-color LED-backlit display with touch interface
Connections
(2) RCA output pairs
(2) coaxial digital outputs
(1) 1/8” (3.5 mm) mini TS input (remote start)
(3) USB Type-A ports (for USB drives) (Rear-panel ports supply 900 mA for USB 3.0 devices, 500 mA for USB 2.0 devices. Front panel port supplies 500 mA for USB 2.0 devices only.)
(1) USB Type-B port (for computer connection)
(1) SD card slot
(1) Ethernet link port
(1) IEC power input
(1) 2.5″ SATA HD bay
Power
Connection: Locking IEC
Input Voltage: 110–240 VAC, 50/60 Hz
Dimensions (Width x Depth x Height)
319.5mm X 463.3mm X 151.17mm
12.6” x 18.2” x 6”
Weight (Without USB and Power Cable)
15.4 lbs.
7.01 kg
Supported Media
Type:
SD/SDHC card
USB mass-storage devices (flash memory, external HDD enclosures)
