RANE DJ Four Channel professional controller w/Stems

Focus On Your Performance, Not Your Laptop

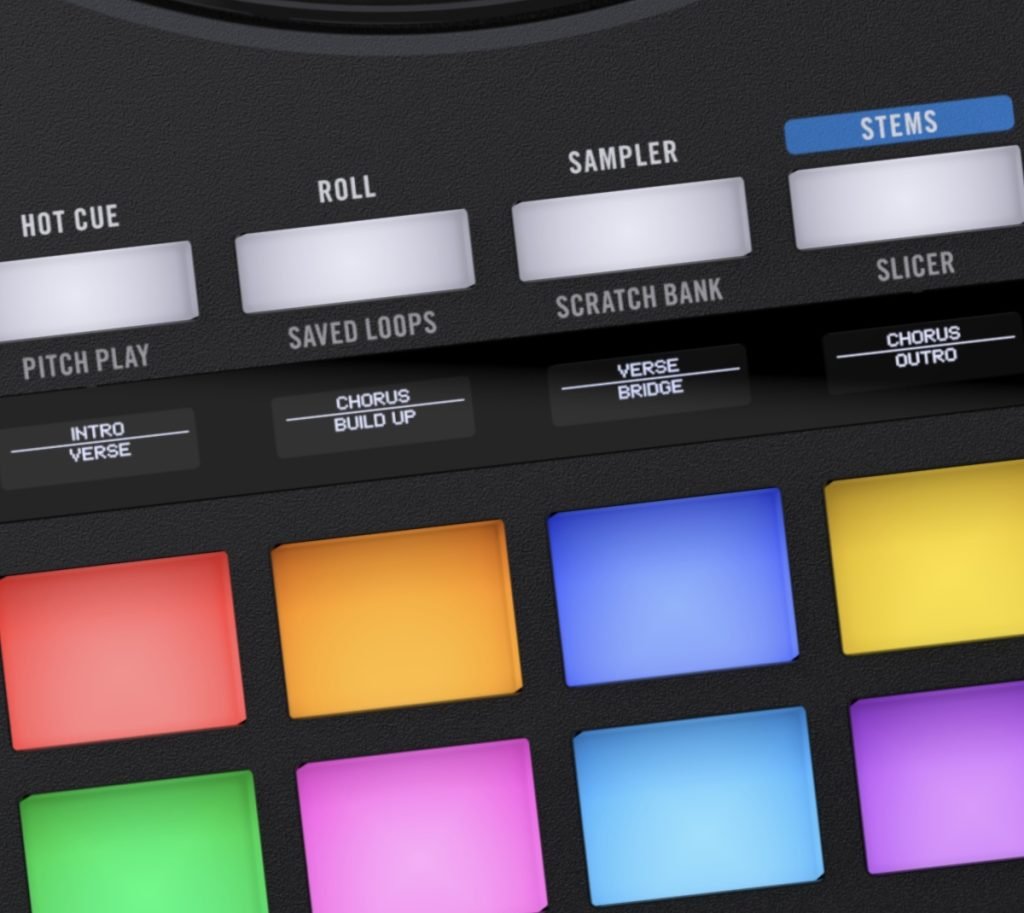

The 8 OLED displays above the 16 Performance Pads offer visual feedback for all pad modes. See Cue, Loop, Sample names, Roll and Loop lengths, beat divisions, Pitch Play tuning, Stem elements and FX

Creative Performance Features

Add flavor to your individual Stems and tracks with the 22 hardware Main FX and 4 knob-controlled Channel FX like Reverb, Scale Down Echo, Recycler, Riser, Filter, Filter Roll, Noise, Flanger and more

Four Channels of Performance Possibility

4-Channel mixer with full EQ control, intuitive FX assignment, enhanced Sampler routing and quick-access jog wheel deck selection buttons and 2 external Line/Phono ins for external turntables or decks

SPECs

Digital Audio	Converters: Cirrus Logic, 24-bit PCM, 48 kHz Digital Signal Processing: 32-bit, Floating Point, Double precisio Dynamic Range (A-weighted, unity gain): ADC: 113 dB DAC: 113 dB CD Input to Analog Output: 110 dB CD Input to USB Output: 113 dB USB Input to Analog Output: 113 dB
Inputs	Microphone 1/2 (Combo XLR/1/4″ [6.35 mm] TRS): Analog Gain: 25 dB Maximum Input: 110 mV Gain Trim: Off to +26 dB (unity at center) Tone Control: 2-band Line/Phono Inputs 3/4 (RCA stereo pairs, switchable): Line: Line Maximum Input: 4 Vrms Gain Trim: Off to +12 dB Tone Control: 3-band, full-cut to +10 dB THD+N (20 kHz BW @ 1 kHz: 0.004% Phono: RIAA RIAA Curve: +/-0.25 dB Gain (@ 1 kHz): 31.5 dB Maximum Input (@ 1 kHz): 106 mV Dynamic Range (A-weighted): 102 dB
Outputs	Main Outputs (XLR): Gain Trim: Off to 0 dB Maximum Output: 8 Vrms THD+N (20 kHz BW @ 1 kHz): 0.004% Frequency Response: Flat – 20-20kHz Main Outputs (RCA stereo pair): Maximum Output: 4 Vrms THD+N (20 kHz BW @ 1 kHz): 0.004% Frequency Response: Flat – 20-20kHz Booth Outputs (1/4”): Gain Trim: Off to 0 dB Maximum Output: 8 Vrms THD+N (20 kHz BW @ 1 kHz): 0.004% Frequency Response: Flat – 20-20kHz Headphone Outputs (1/4″/6.35 mm and 1/8″/3.5 mm TRS): Maximum Output: 4 Vrms Voltage: (no load) Output Power: 50 mW (50 ohms) Dynamic Range (A-weighted): 108 dB
Pads	(16) on/off multi-color back-lit pads (8 per deck, 9 modes each
Wheel Displays	(2) 320 x 240 Color LCD’s
Pad & FX Displays	(9) 128 x 32 Monochrome OLED’s
Faders	(1) MAG FOUR tension-adjustable crossfader with contour (4) Standard channel faders
Connections	(2) XLR outputs (Main) (2) 1/4” outputs (Booth) (1) RCA stereo output pair (Main) (2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2) (2) RCA stereo input pairs (Deck 3-4) (1) 1/4” (6.35 mm) TRS output (Headphones) (1) 1/8” (3.5 mm) TRS output (Headphones) (2) USB Type-B ports (1) IEC power cable input
Power	Connection: IEC Voltage: 100–240 V, 50/60 Hz Consumption: 20 W
Dimensions	Dimensions (width x depth x height): 30.8” x 15.9” x 4.2” 782.32 x 403.8 x 106.6 mm
Weight (including platters)	18.25 lbs. 8.27 kg
