Excellent sound design
Just like the PLX-1000, the PLX-500 is built to produce a high-quality vinyl sound. The shortest possible audio routing from the stylus to the outputs reduces distortion, while the phono/line output switch lets you connect directly to your sound system or to powered speakers with no need for an external amplifier.

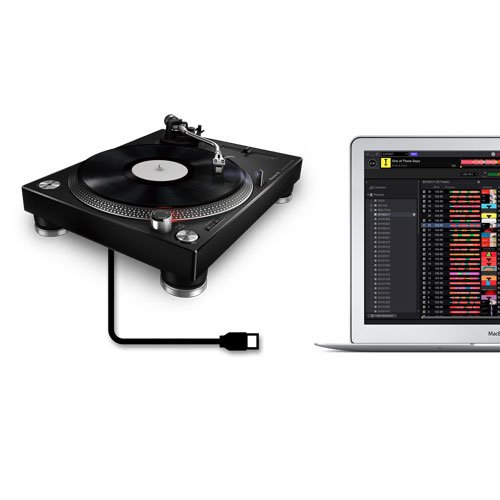

Easy digital recording
Record your vinyl collection to high-quality digital files by simply connecting the turntable to your PC or Mac via the USB out.

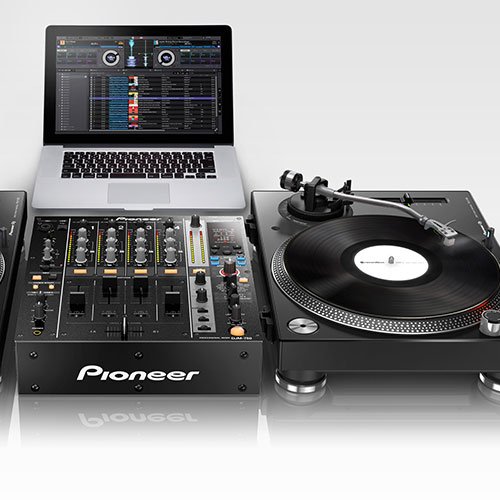

Smooth DJ play
Use the PLX-500 to mix and scratch your vinyl records or combine the turntable with rekordbox dvs, a compatible DJ mixer and the RB-VS1-K Control Vinyl to play and perform with your digital files.
– Color: Black
– Width: 17.72″
– Height: 6.26″
– Depth: 14.49″
– Weight: 23.59 lb
– Drive Method: Servo-type direct drive
– Platter: Aluminium, die-casting diameter: 332 mm
– Motor: 3-phase, brushless DC motor
– Braking System: Electronic brake
– Rotation Speed: 33 1/3, 45, 78 rpm
– Rotation Adjustment Range: +/-8 %
– Wow and Flutter: < 0.15% WRMS
– Signal-to-Noise Ratio: 50 dB
– Starting Torque: > 1.6 kgf.cm
– Start Time: Within 1 sec (at 33 rpm)

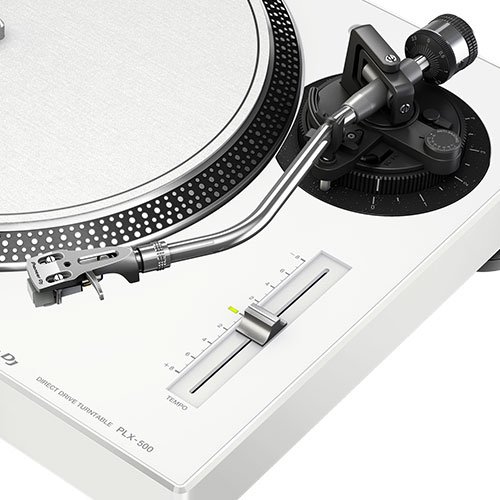

Arm Type:
– Universal type S-shape tone arm
– Gimbal-supported type bearing structure
– Static balance type
– Overhang: 0.63 in
– Effective Length: 9.07 in
– Tracking Error: Within 3*
– Height Adjustent Range: 0.24 in
– Stylus Pressure Variable Range: 0-4 g (1 scale 0.1 g)
– Cartridge Weight Single: < 9.5 g
– Cartridge type: VM

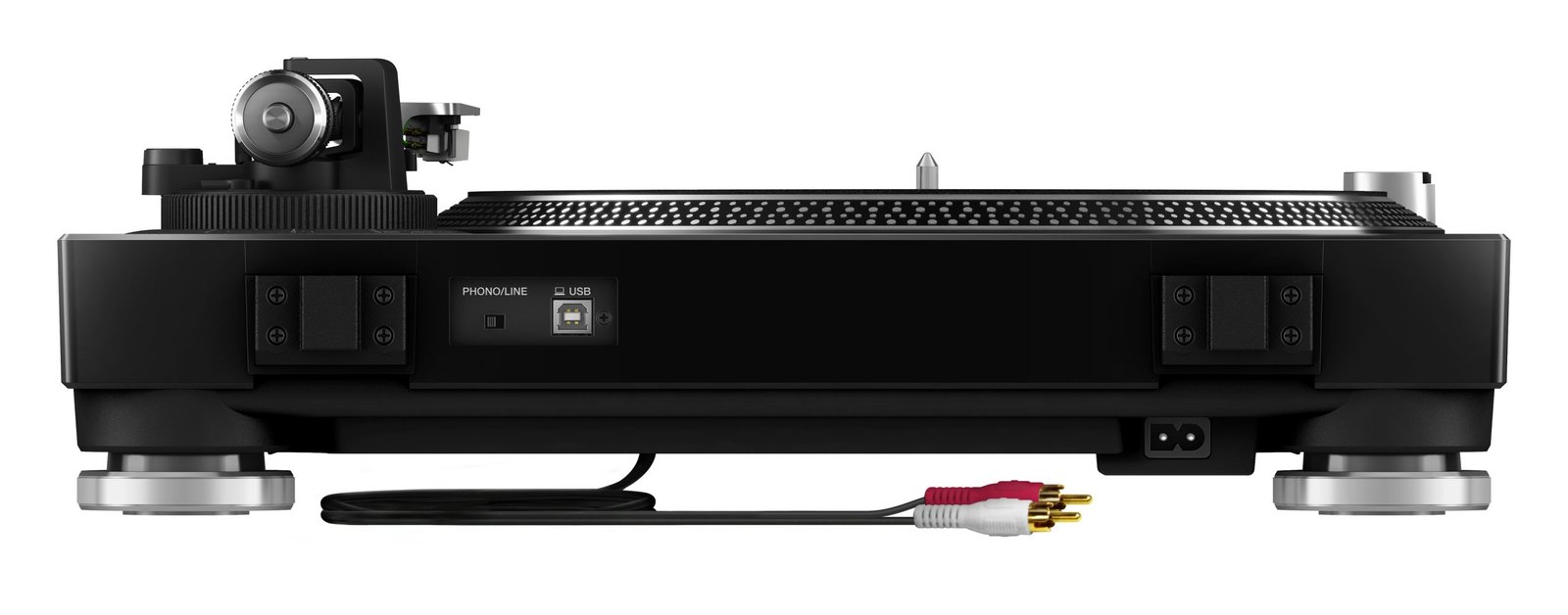

– Outputs: 1 PHONO/LINE (RCA)
– USB: 1 USB B port
- Dimensions and Weight in Packaging
- Black, PLX-500-K
- Shipping Weight: 30 lbs
- Shipping Dimensions: 22 x 19 x 11 in
- Manufacturer Part Number (MPN): PLX-500-K
- White, PLX-500-W
- Shipping Weight: 30 lbs
- Shipping Dimensions: 22 x 19 x 11 in
- Manufacturer Part Number (MPN): PLX-500-W
- Blemished, White, PLX-500-W
- Shipping Weight: 30 lbs
- Shipping Dimensions: 22 x 19 x 11 in
- Manufacturer Part Number (MPN): PLX-500-W
- Black, PLX-500-K, with Odyssey FZ1200BL Case
- Shipping Weight: 49.25 lbs
- White, PLX-500-W, with Odyssey FZ1200 Case (White)
- Shipping Weight: 52 lbs
