Max. external dimensions (W × D × H)302.0 × 437.5 × 107.9 mm / 11.89″ × 17.22″ × 4.25″
Main unit weight8.0 kg / 17.6 lbs.

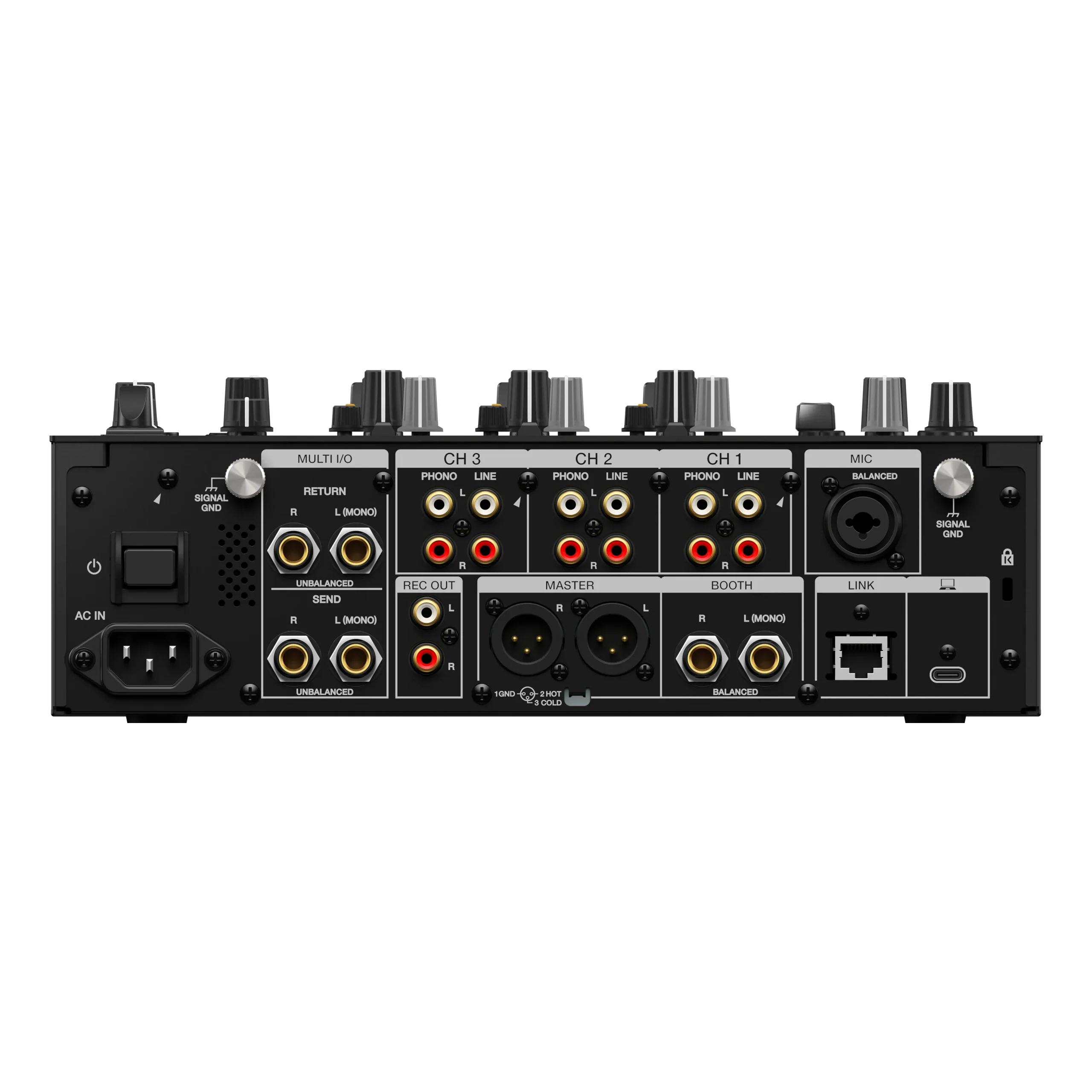

InputPHONO × 3 (RCA)
LINE × 3 (RCA)
MIC × 1 (XLR / 1/4-inch TRS jack)
LINE × 3 (RCA)
MIC × 1 (XLR / 1/4-inch TRS jack)
OutputMASTER × 1 (XLR)
BOOTH × 1 (1/4-inch TRS jack)
REC OUT × 1 (RCA)
PHONES × 2 (1/4-inch / 3.5 mm)
BOOTH × 1 (1/4-inch TRS jack)
REC OUT × 1 (RCA)
PHONES × 2 (1/4-inch / 3.5 mm)
SEND/RETURNSEND × 1 (1/4-inch TS jack)
RETURN × 1 (1/4-inch TS jack)
RETURN × 1 (1/4-inch TS jack)
LANLAN × 1
USBUSB Type-C × 2
(MULTI I/O × 1, PC/Mac × 1)
(MULTI I/O × 1, PC/Mac × 1)
Sampling Rate96 kHz
A/D Converter32 bit
D/A Converter32 bit
S/N RatioLINE 105 dB / PHONO 88 dB / MIC 79 dB
EQ4 Band
