Description
A New Standard in Compact Digital Mixing
User Interface
Drag-and-Drop Layout
Channels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the displays, allowing you to build a mixing environment that works for you.
At-a-Glance Metering
Each strip features our patented Chromatic channel metering system, giving you at-a-glance level indication thanks to LEDs with variable brightness and colour
Speed Up Your Workflow
All SQ mixers feature SoftKeys which can be assigned to commonly used functions. The SQ-6 and SQ-7 also provide assignable Soft Rotaries for even more custom control.
Intuitive Control
SQ’s dashboard is centred around a high-res 7” touchscreen, framed by an array of high-grip, illuminating encoders to create an intuitive, integrated blend of clear visual feedback and immediate, hands-on control.

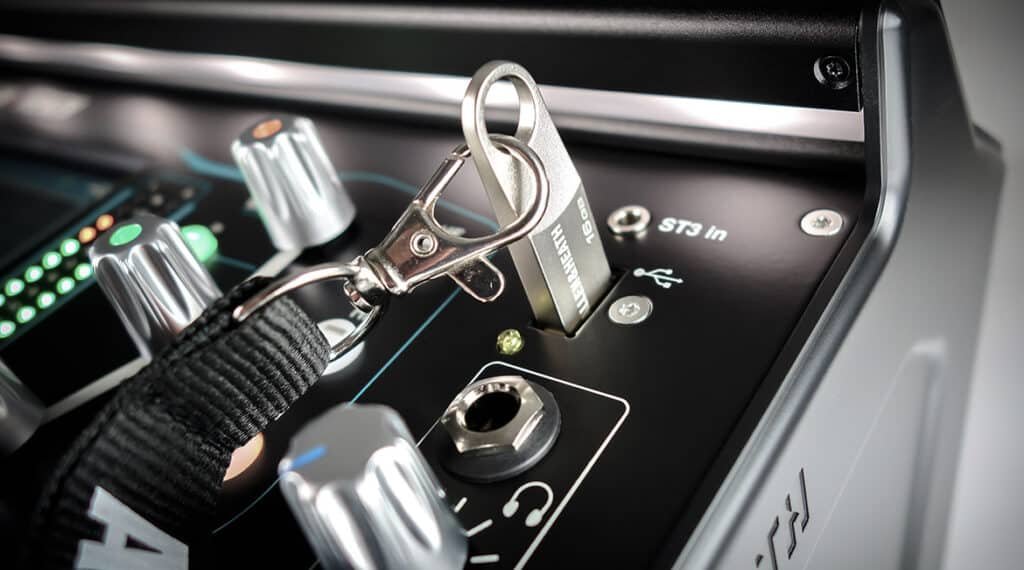

Record to USB
The integrated SQ-Drive makes it quick and easy to capture and playback 16 channels (96kHz), 32 channels (48kHz), or a stereo recording of the performance direct to a USB key or drive.
No software setup, no soundcard driver issues and no extra laptop to bring to the performance.
About this item
- 96kHz XCVI FPGA core, less than 0.7ms Latency with all processing enabled
- 48 Input channels, 12 Stereo mixes + LR, 3 Stereo Matrix
- 16 onboard preamps, 17 faders, Rackmountable 19-inch, 8 SoftKeys
- Access to DEEP plug-ins, Automatic Mic Mixing, 8 Stereo FX engines + dedicated returns
- I/O Port for expansion and system compatibility, AES and XLR outputs, 7” capacitive touchscreen
Product Description

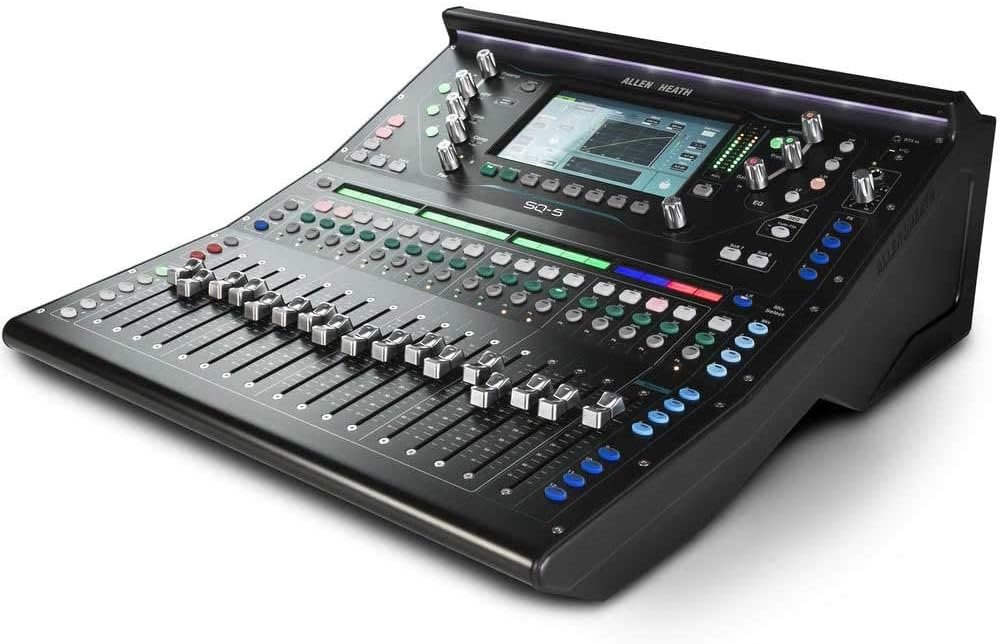

Allen & Heath SQ-5 Digital Mixer, 48 Input Channels, 12 Stereo Mixes + LR, 3 Stereo Matrix, Access to DEEP Plug-ins, Automatic Mic Mixing, 7″ Capacitive Touchscreen, 32×32 USB Audio Interface
Key Features- 96kHz XCVI FPGA core, less than 0.7ms Latency with all processing enabled
- 48 Input channels, 12 Stereo mixes + LR, 3 Stereo Matrix
- Access to DEEP plug-ins, Automatic Mic Mixing, 8 Stereo FX engines + dedicated returns
- 7” capacitive touchscreen
- SLink port for remote audio/expansion
- I/O Port for expansion and system compatibility
- 32×32 USB audio interface, SQ-Drive direct recording to USB
- AES output
- Wireless control, Chromatic channel metering, Integrated LED illumination
- Dedicated physical controls, Channel LCD displays, 6 Layers of faders
- 16 onboard preamps, 17 faders, Rackmountable 19-inch, 8 SoftKeys
Specifications

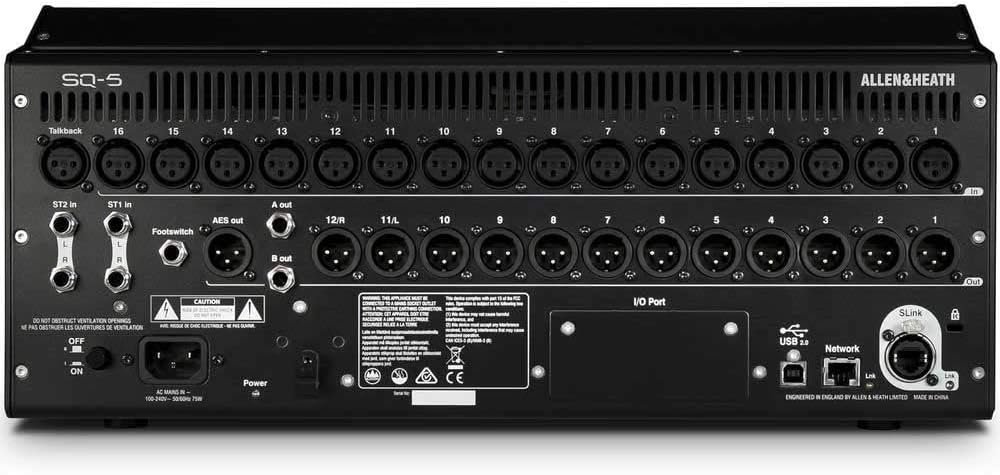

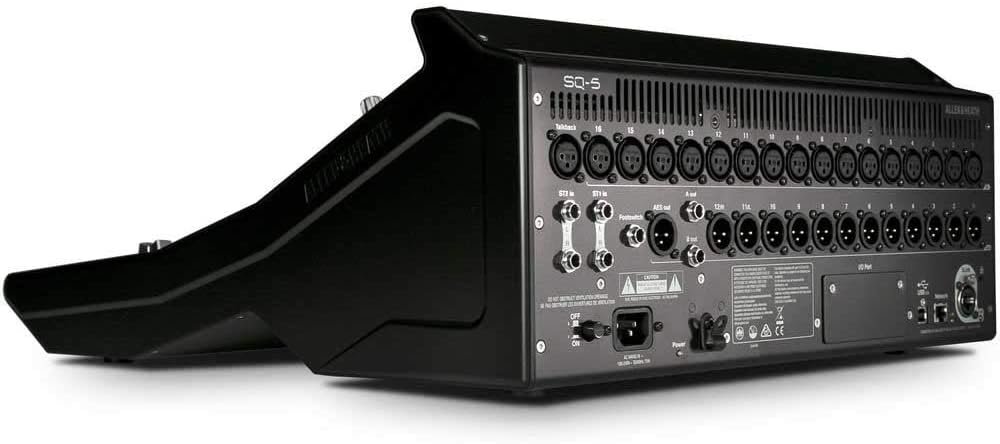

- Mic/Line Inputs: Balanced XLR, fully recallable
- Input Sensitivity: -60 to +0dBu
- Switchable Pad: -20dB
- Maximum Input: Level +30dBu
- Input Impedance: >5kΩ
- ST1, ST2 connectors: Balanced, 1/4″ TRS jack
- ST3 connector: Unbalanced, stereo 3.5mm Mini Jack
- Input Impedance: >7kΩ
- XLR Outputs: Balanced, XLR
- AES Digital Output: Balanced XLR 2 channel, 96kHz sampling rate (Default with SRC Bypassed) Switchable output sample rates, 44.1kHz/ 48kHz/ 88.2kHz/ (96kHz) 2.5Vpp balanced terminated 110G
- Slink Connection: Neutrik EtherCON (RJ45)

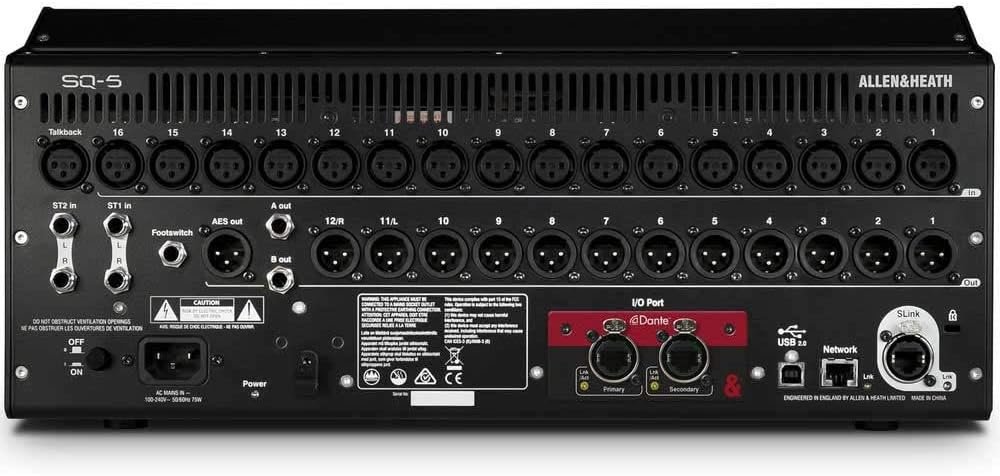

- I/O Port: Multi-channel I/O option module
- System: Measured balanced XLR in to XLR out, 0dB gain, 0dBu input
- Latency: less than 0.7mS, Local Mic Input to Main L/R
- Mains Power: 100-240V AC, 50/60Hz
- Max Power Consumption: 75W

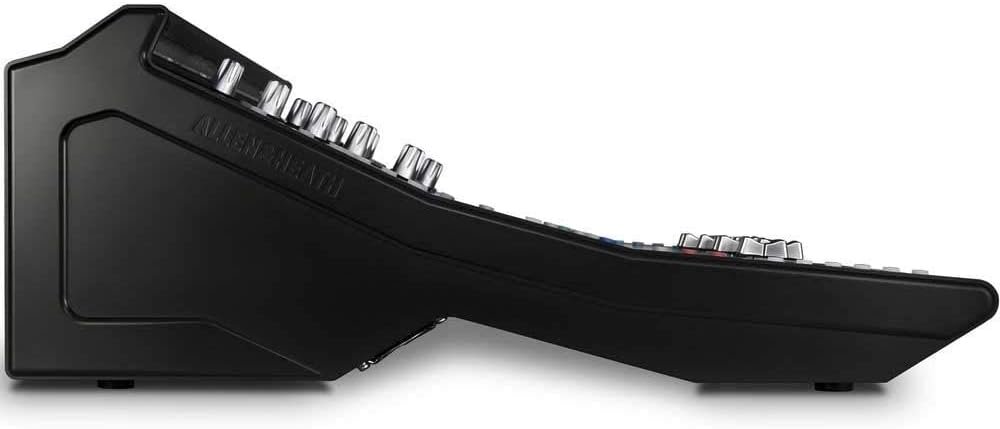

- Dimensions: 17.3″ x 20.3″ x 7.8″ (Desk Mounted)
- Weight: 23.1 lbs
